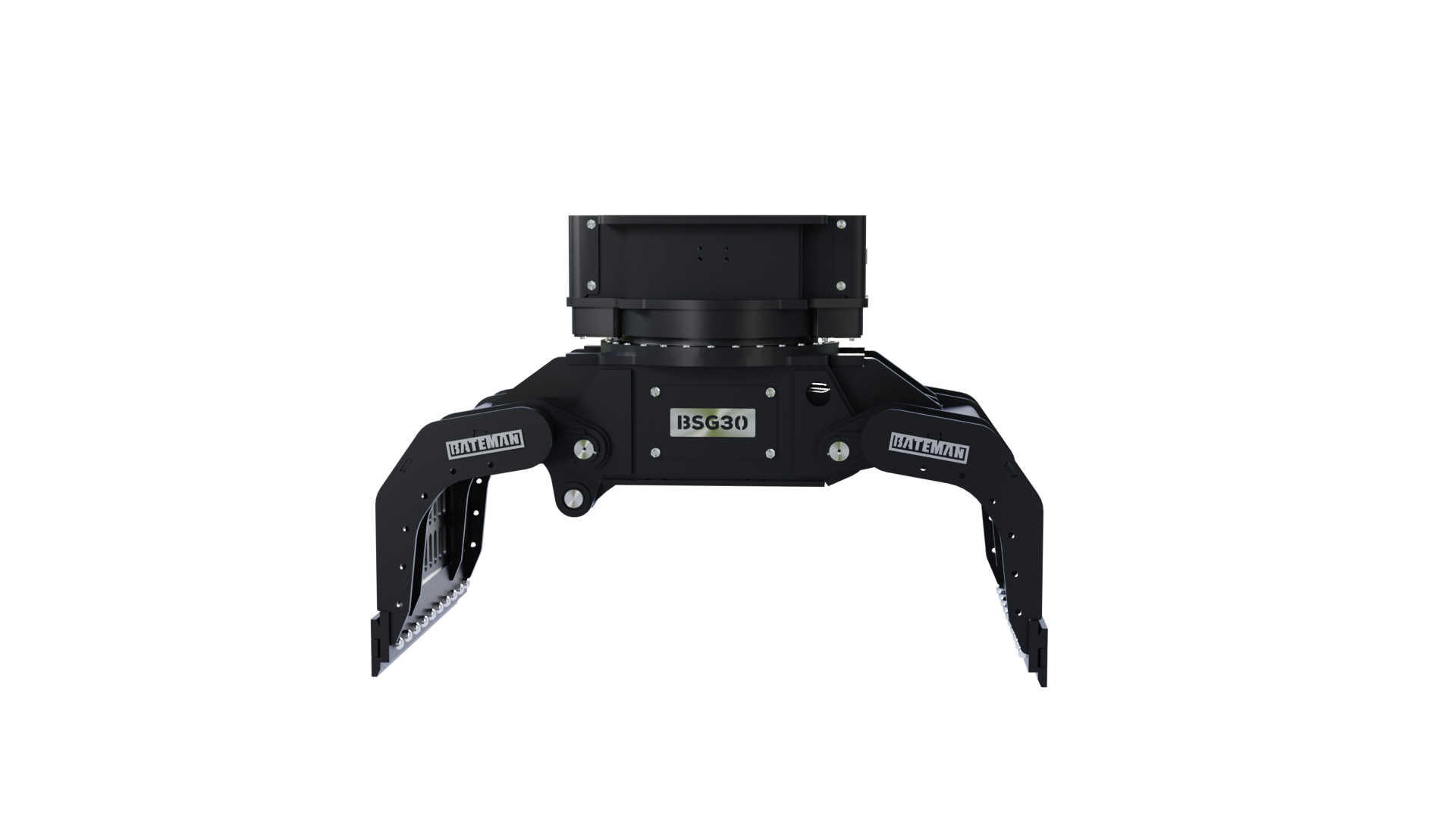

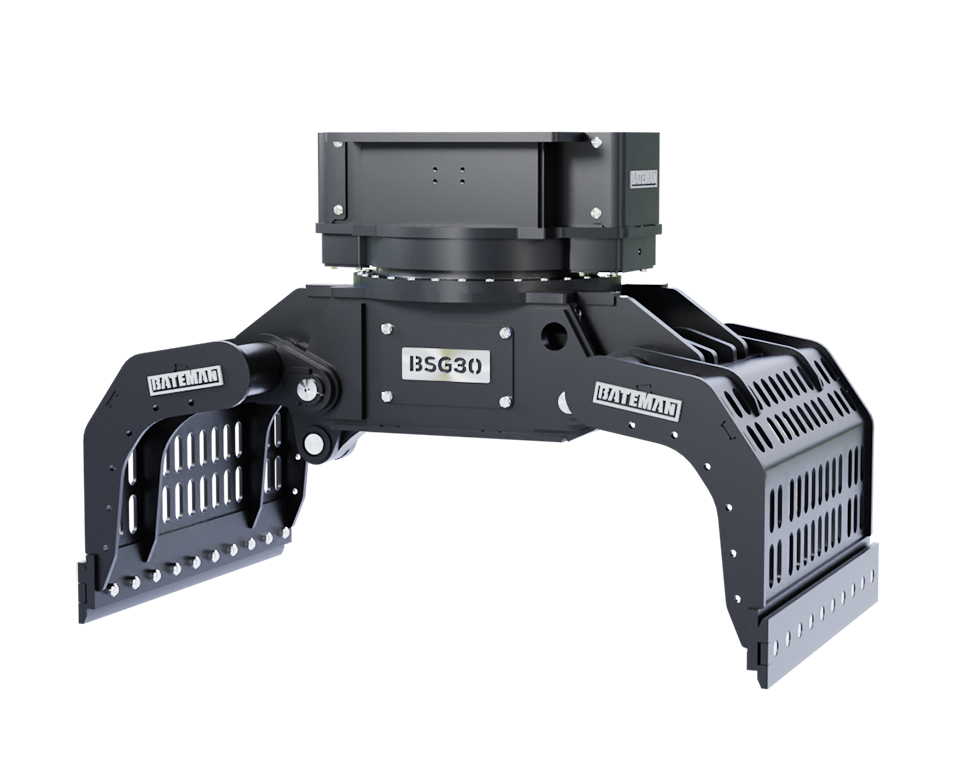

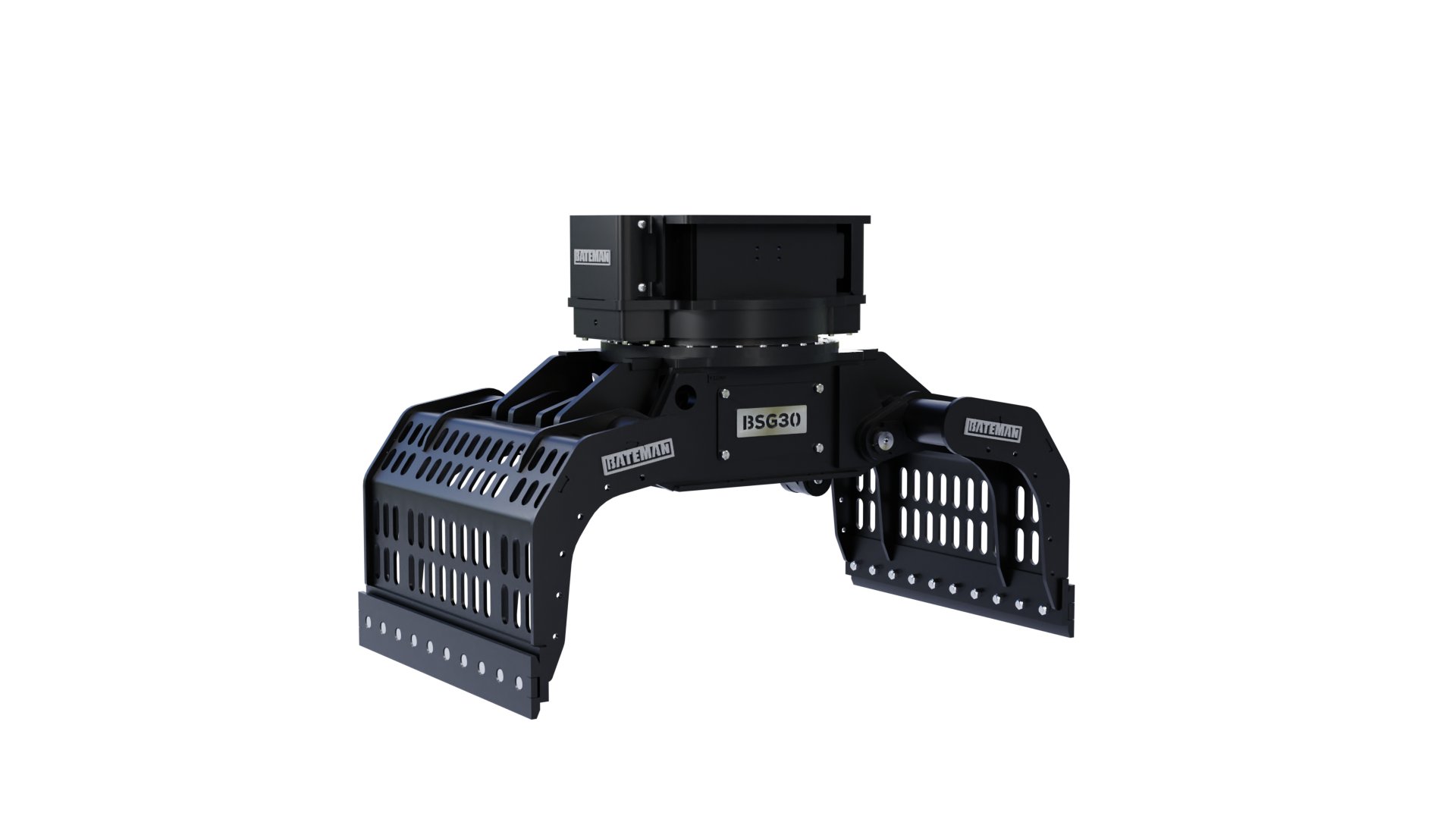

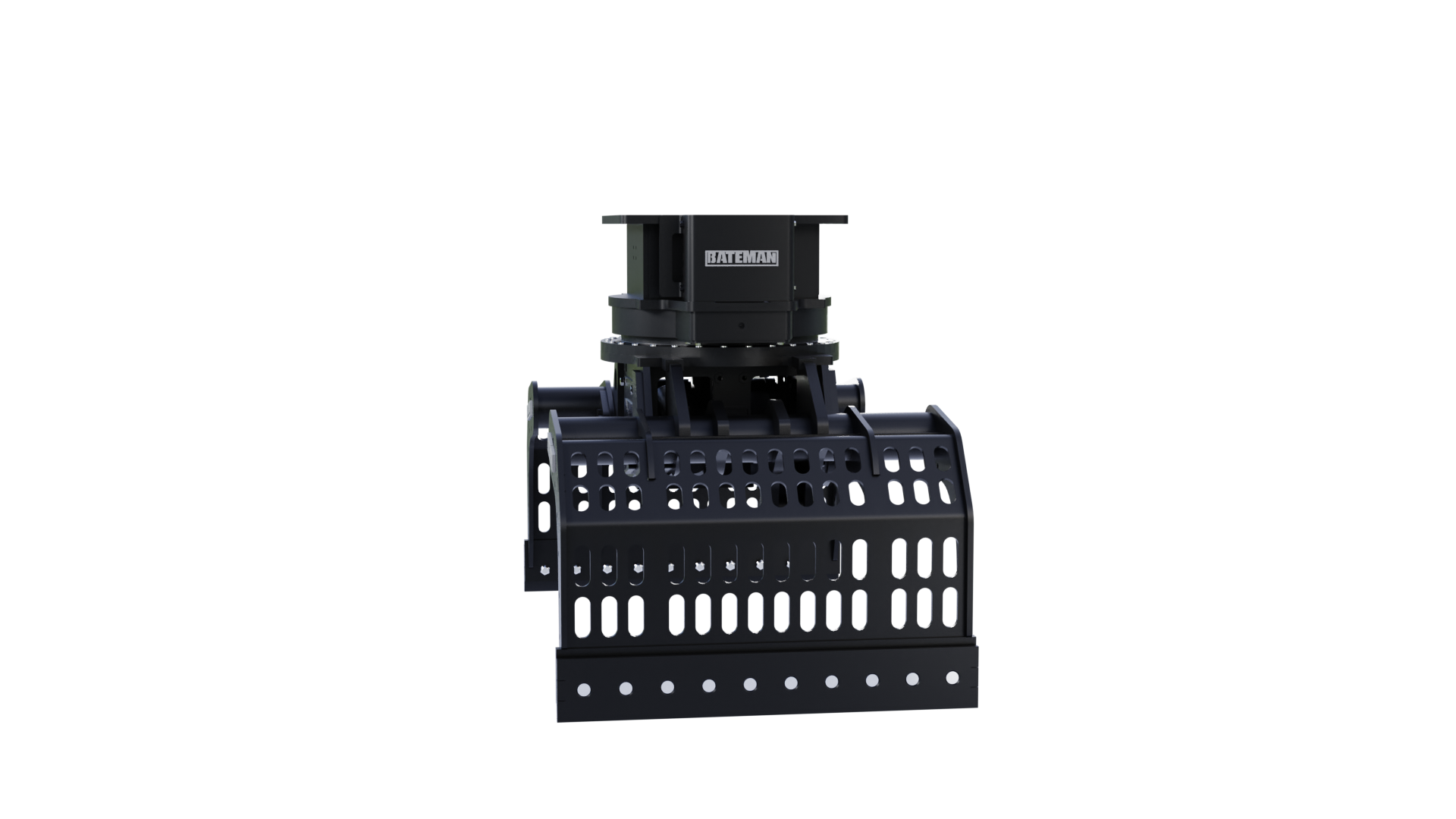

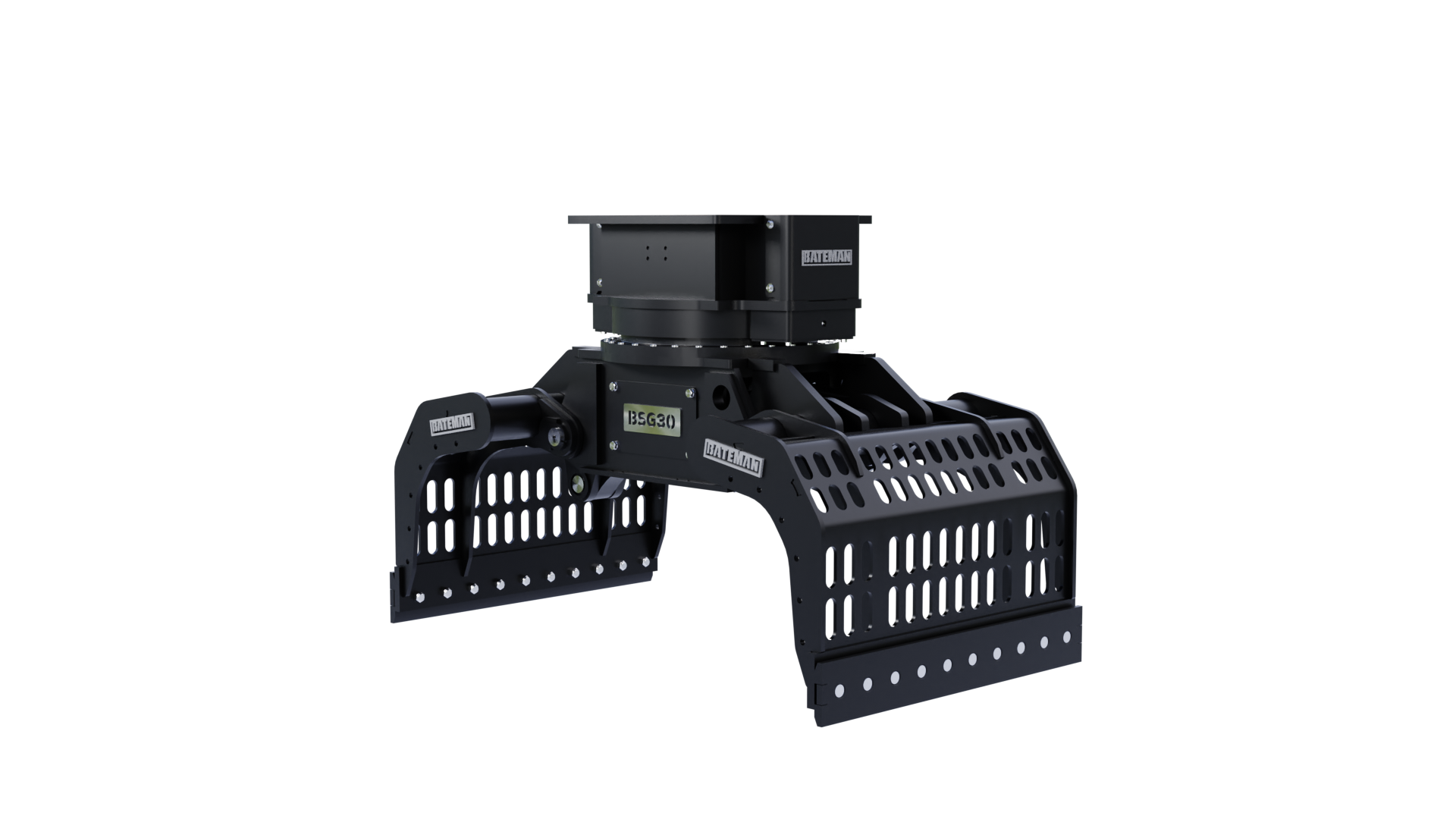

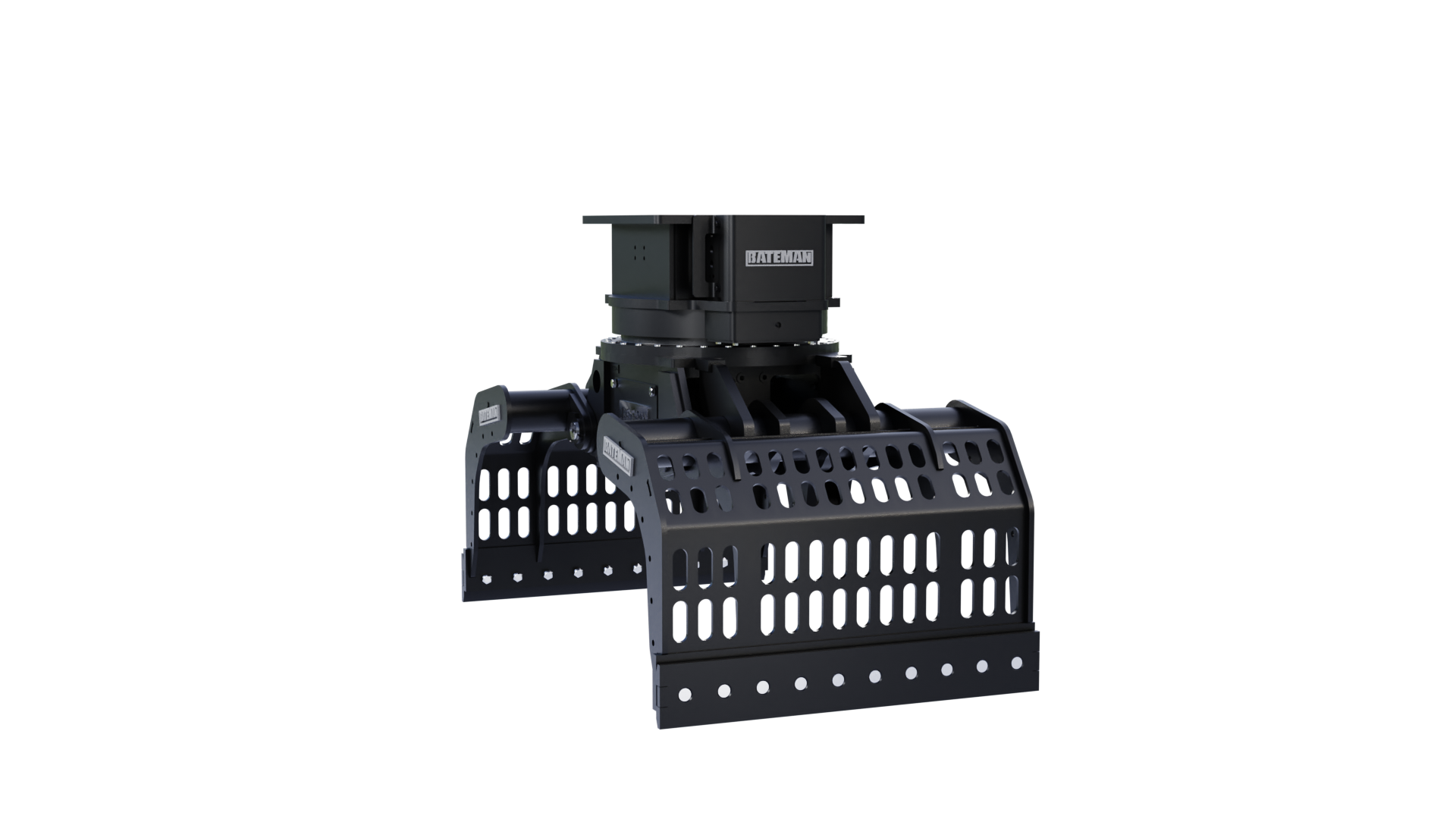

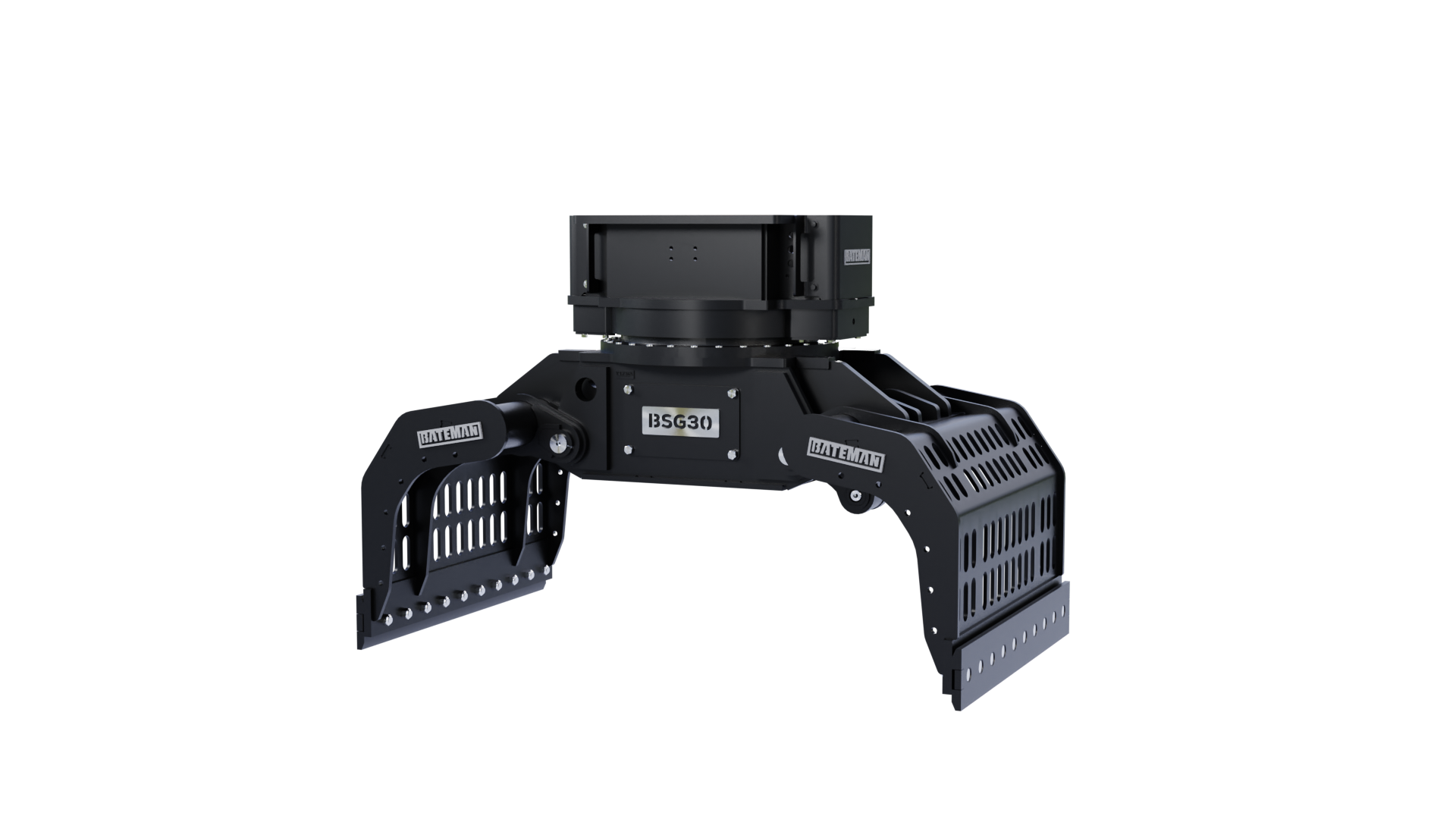

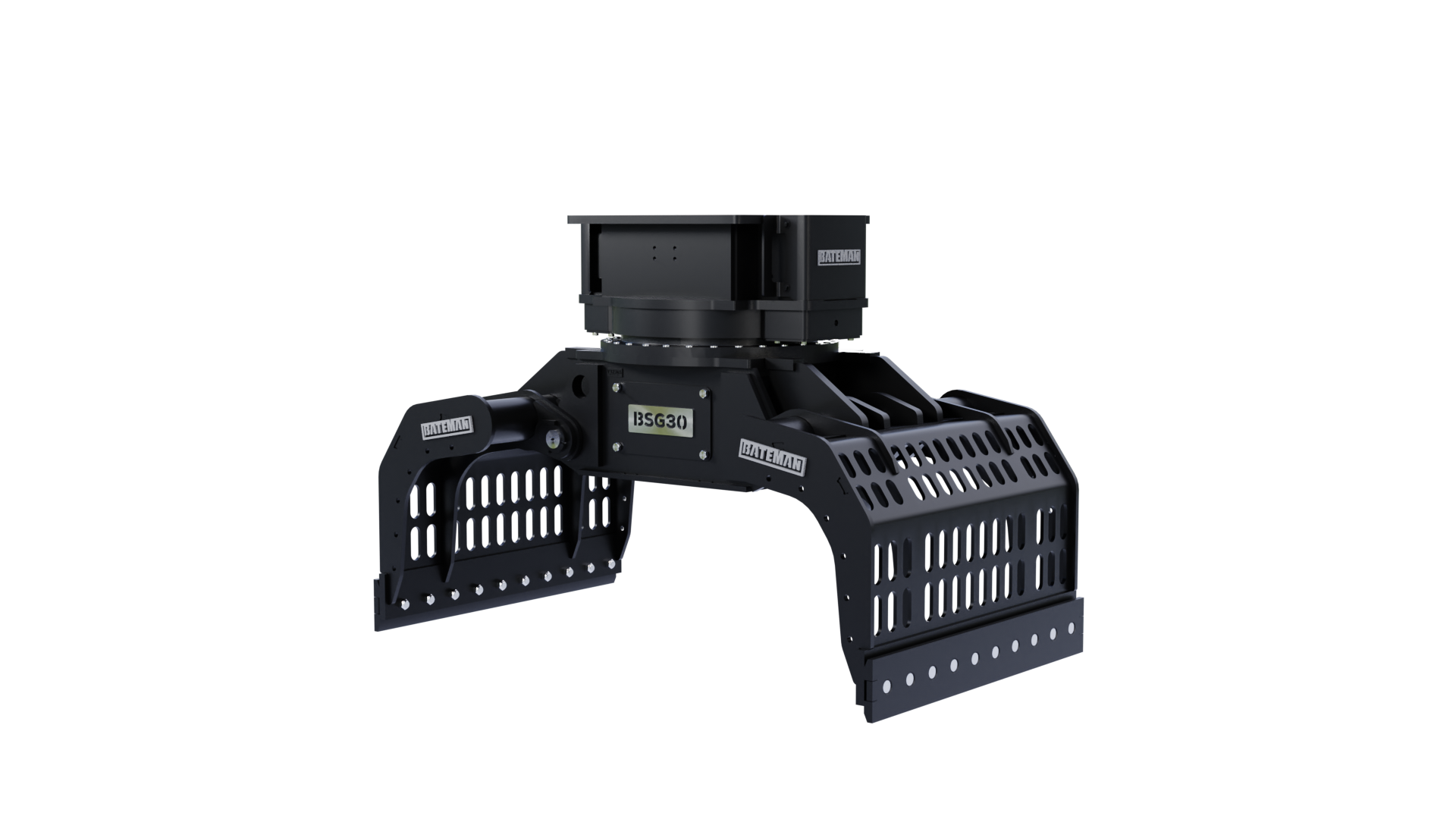

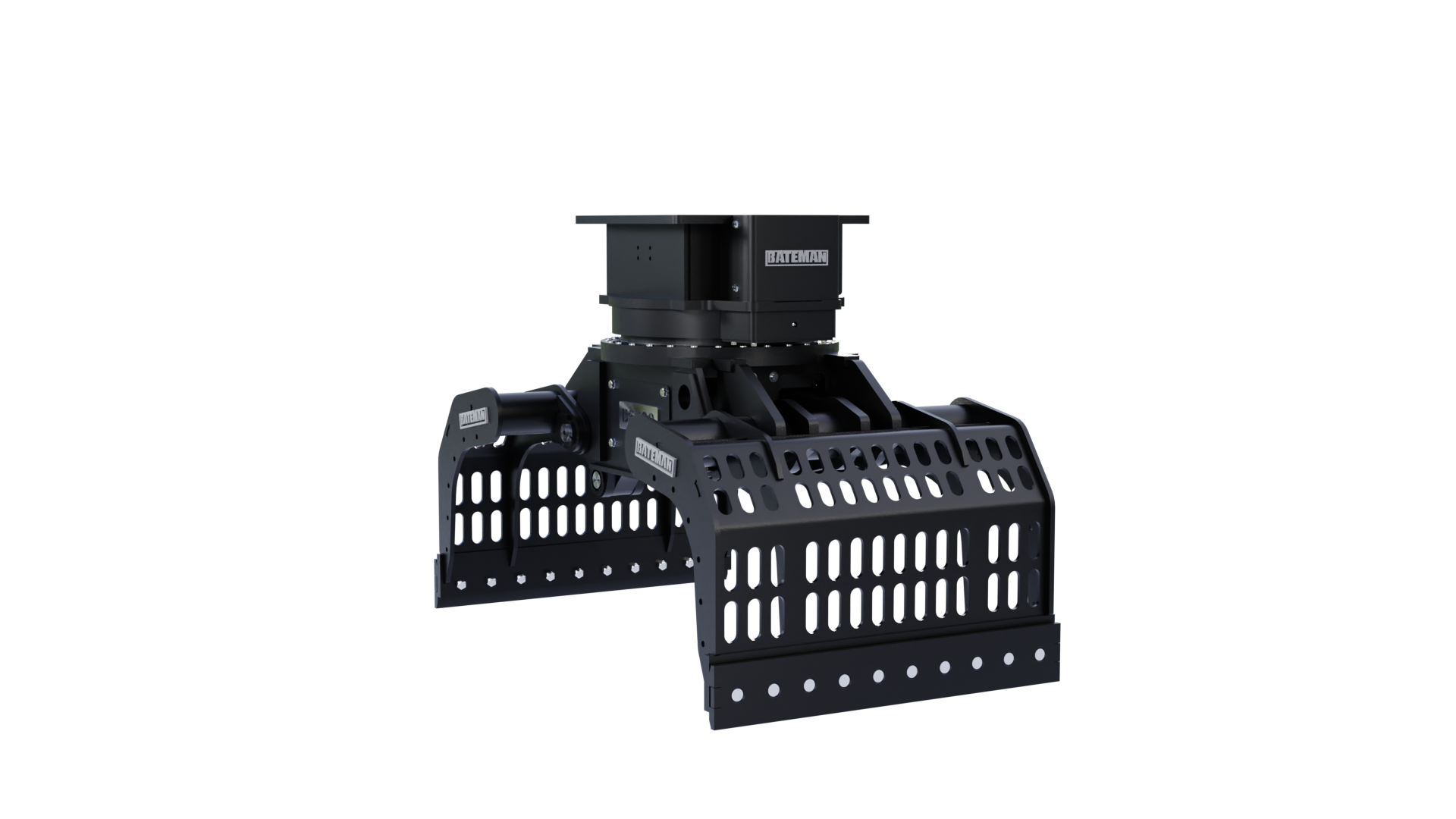

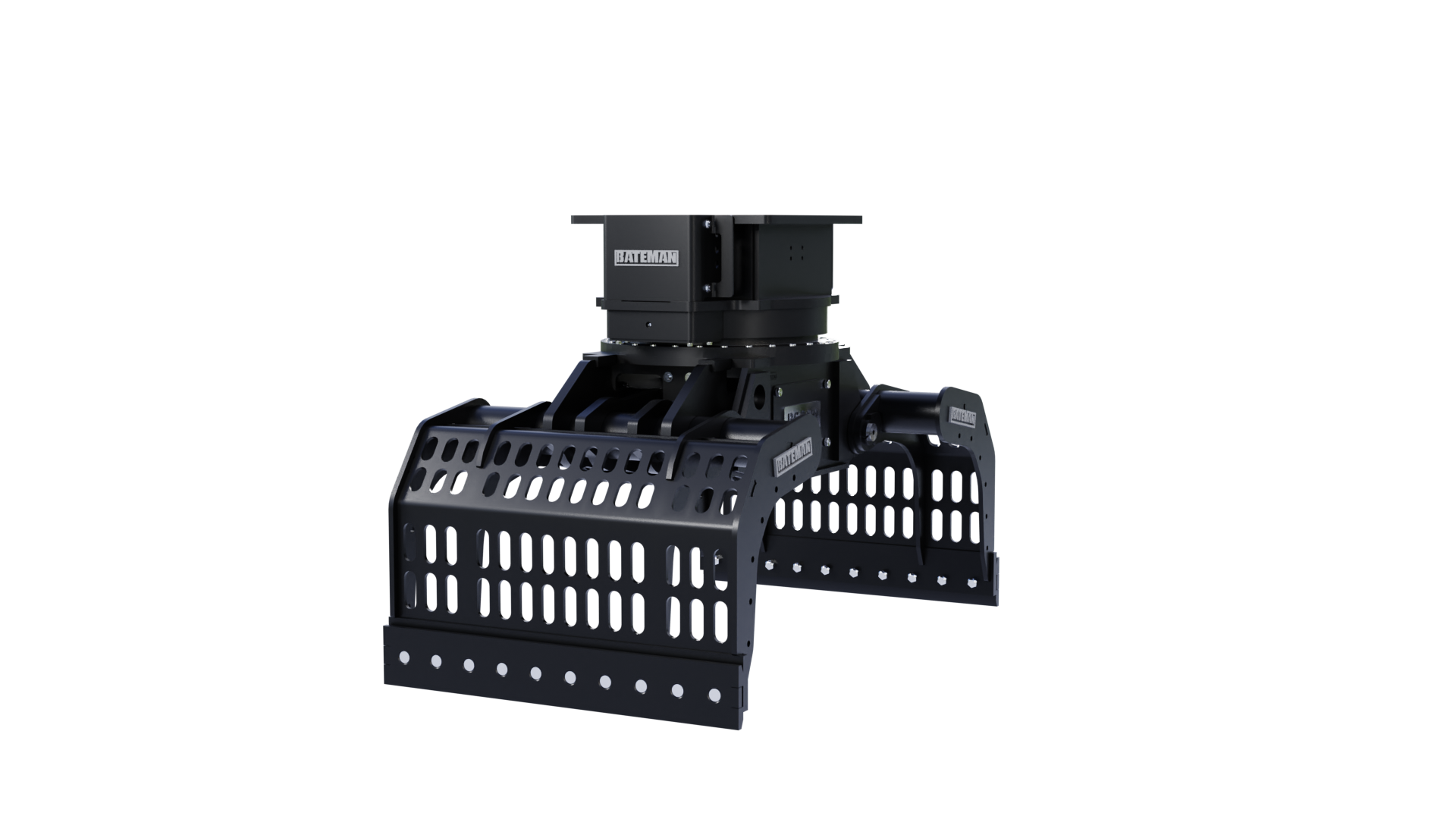

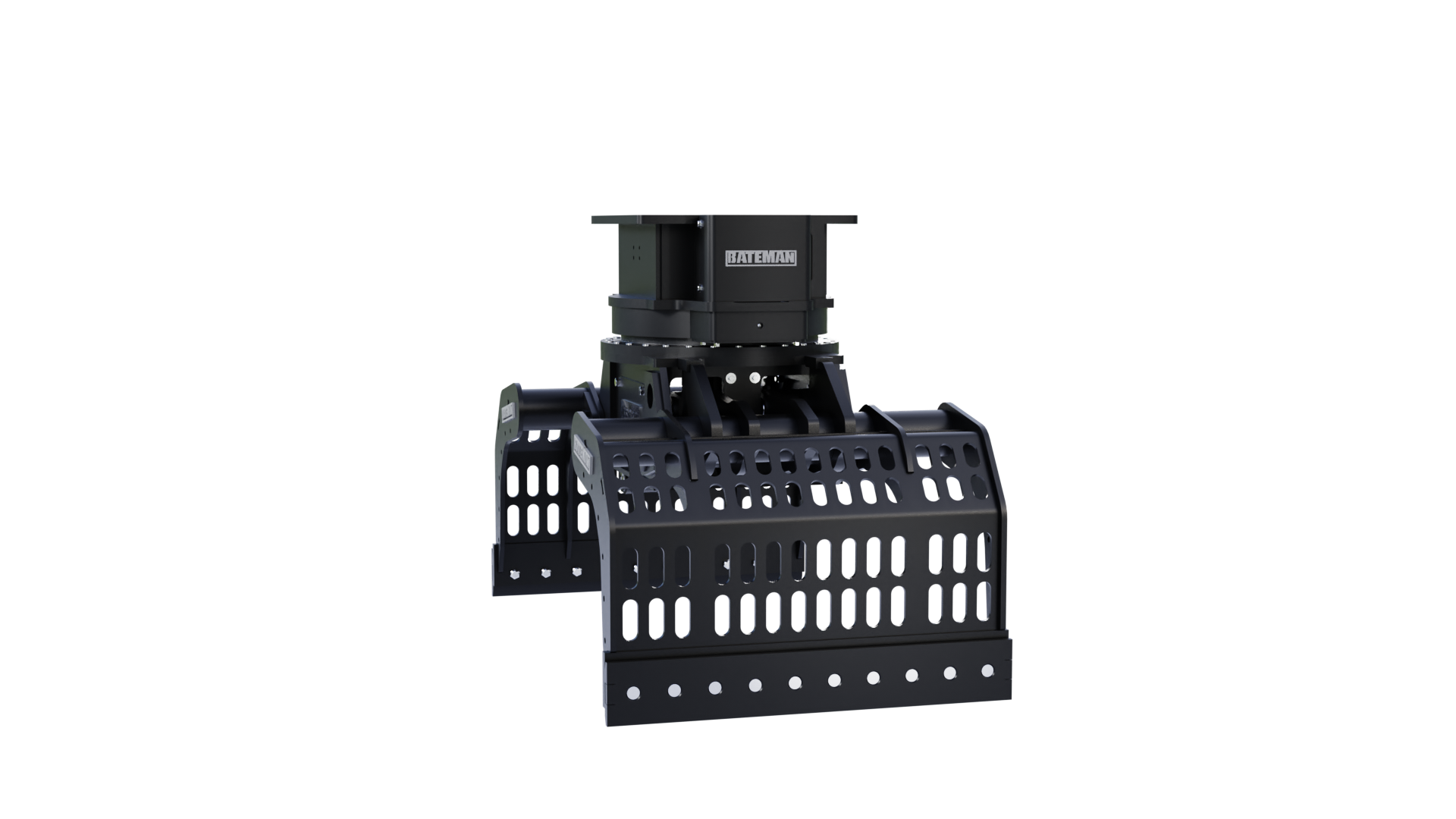

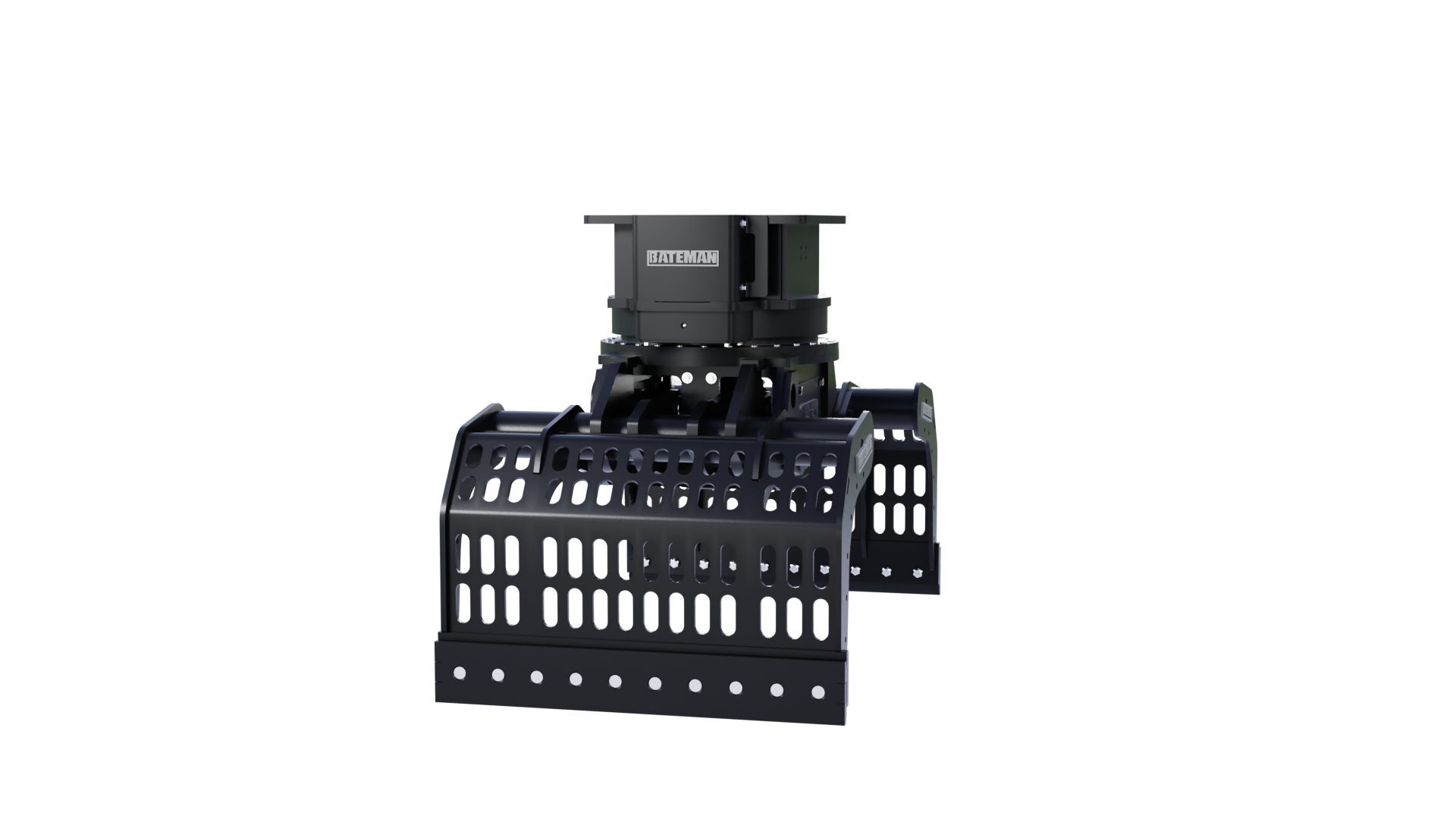

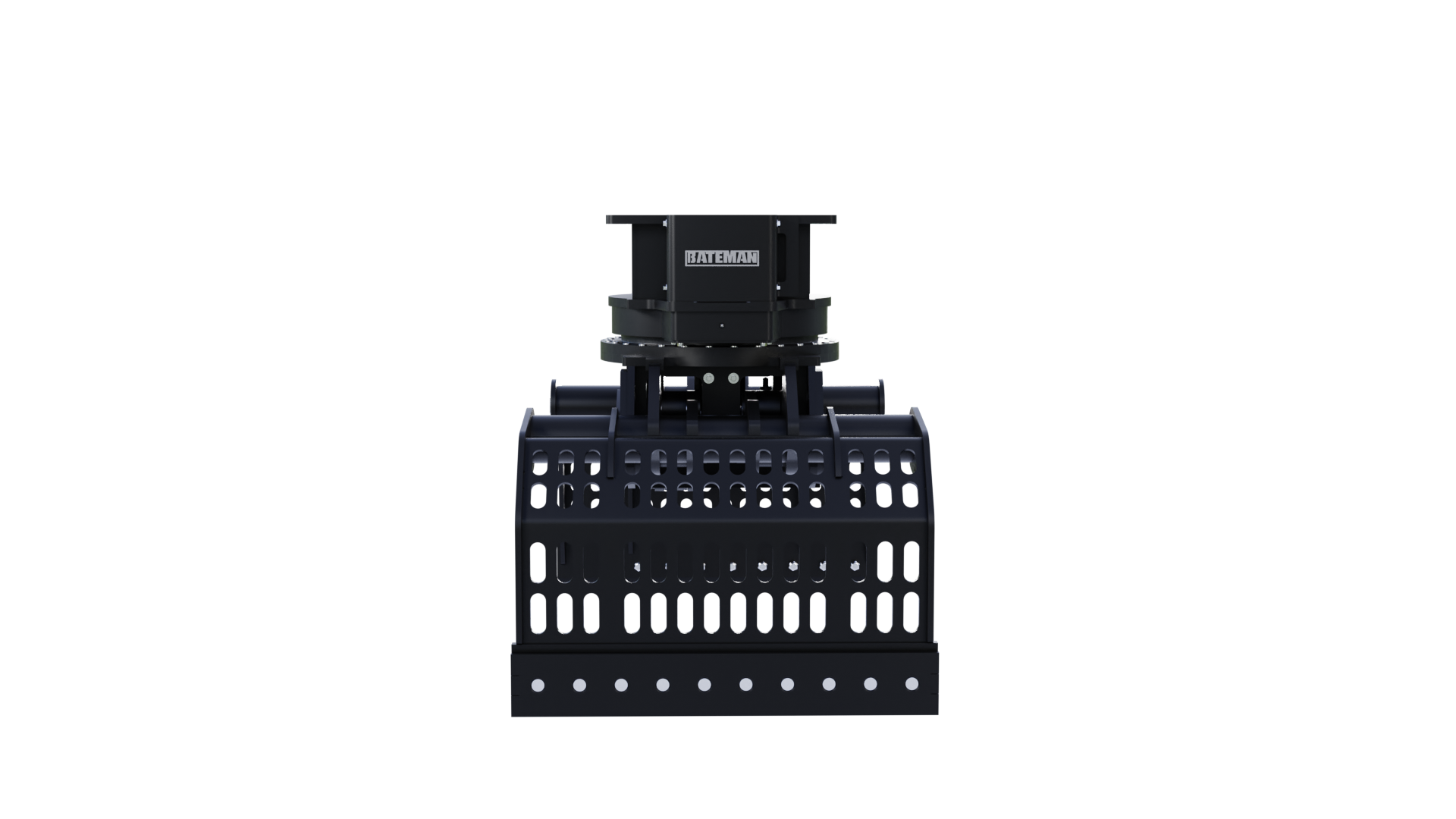

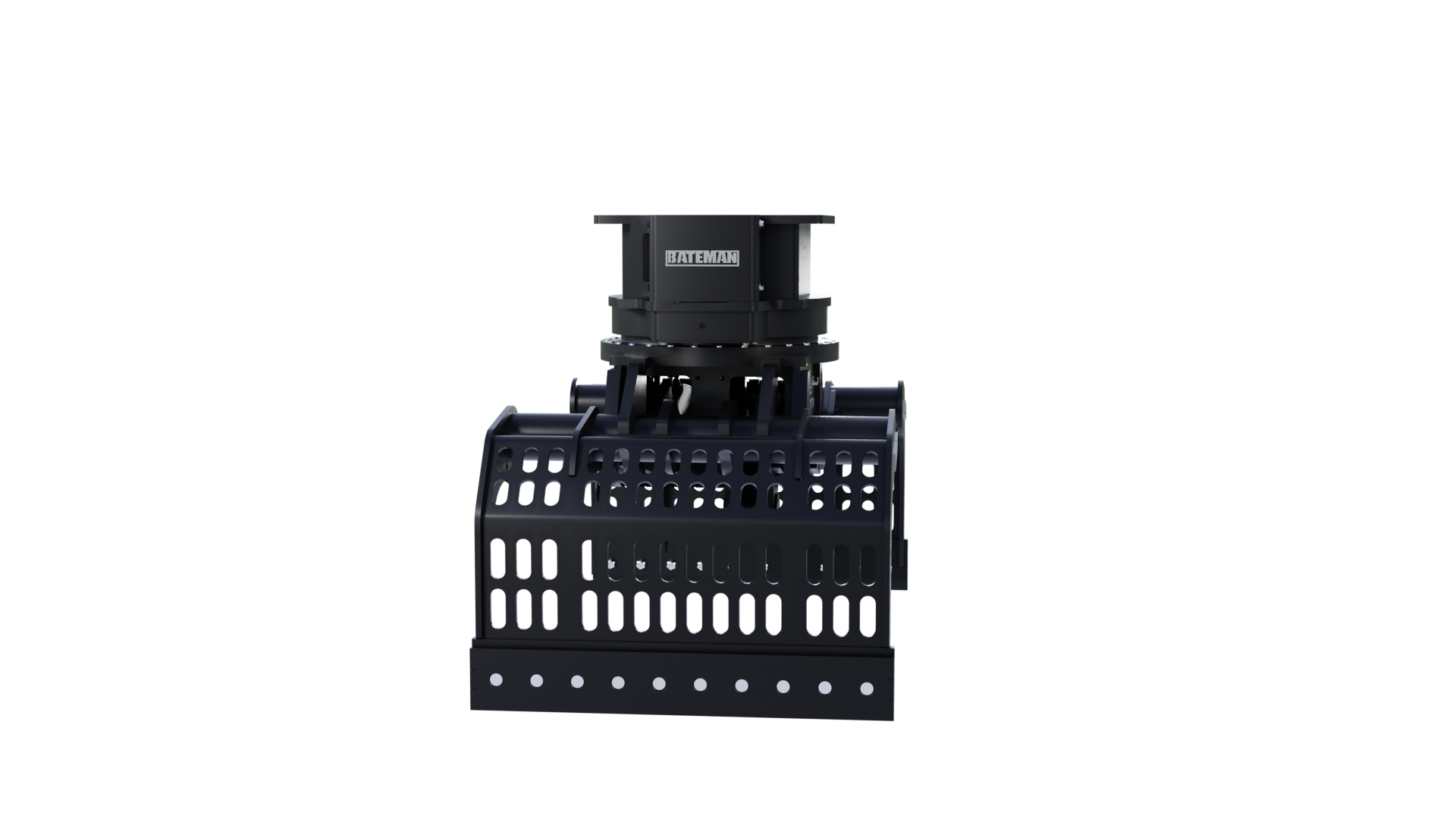

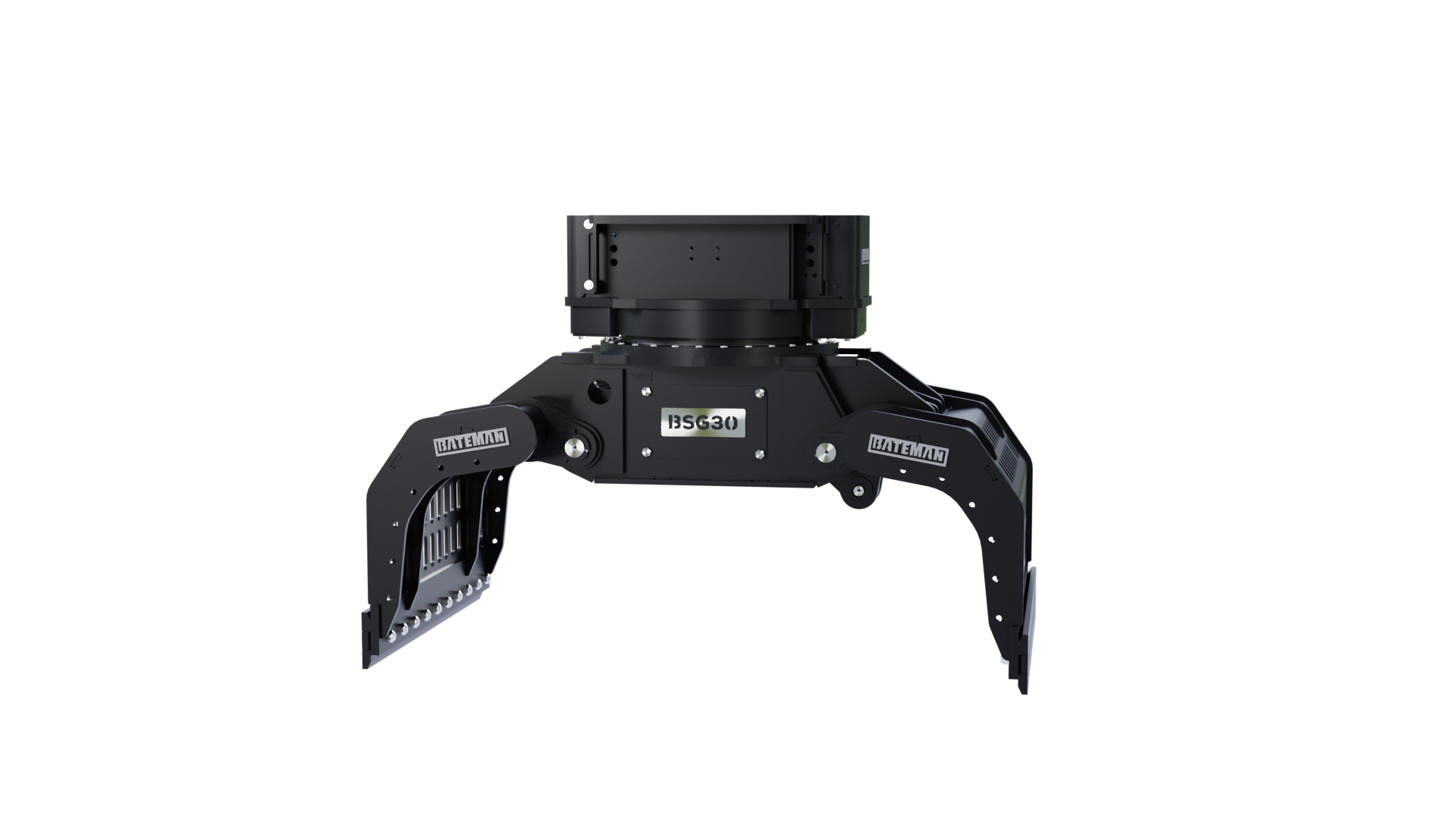

Waste Sorting Grapple
BSG Models

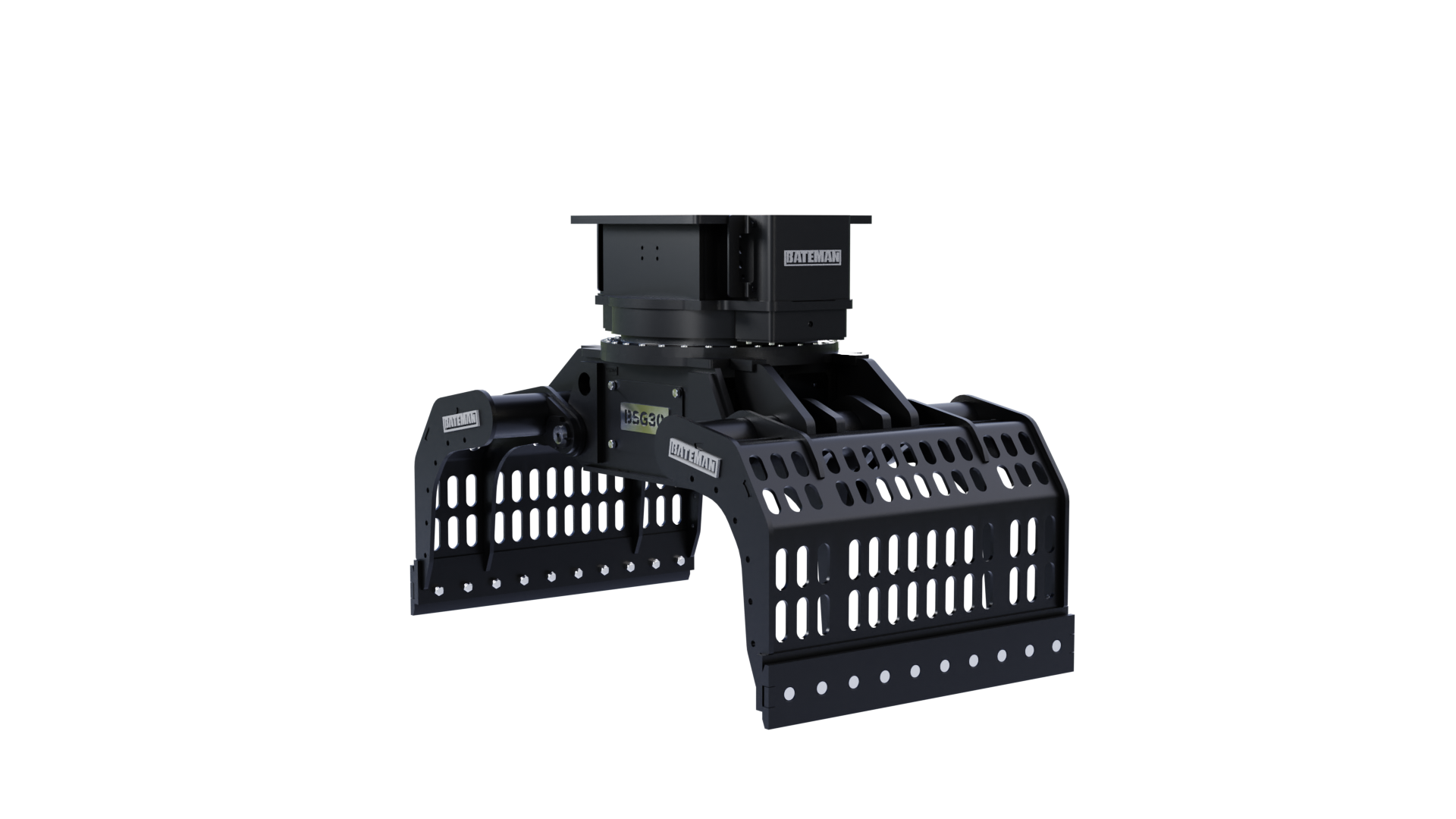

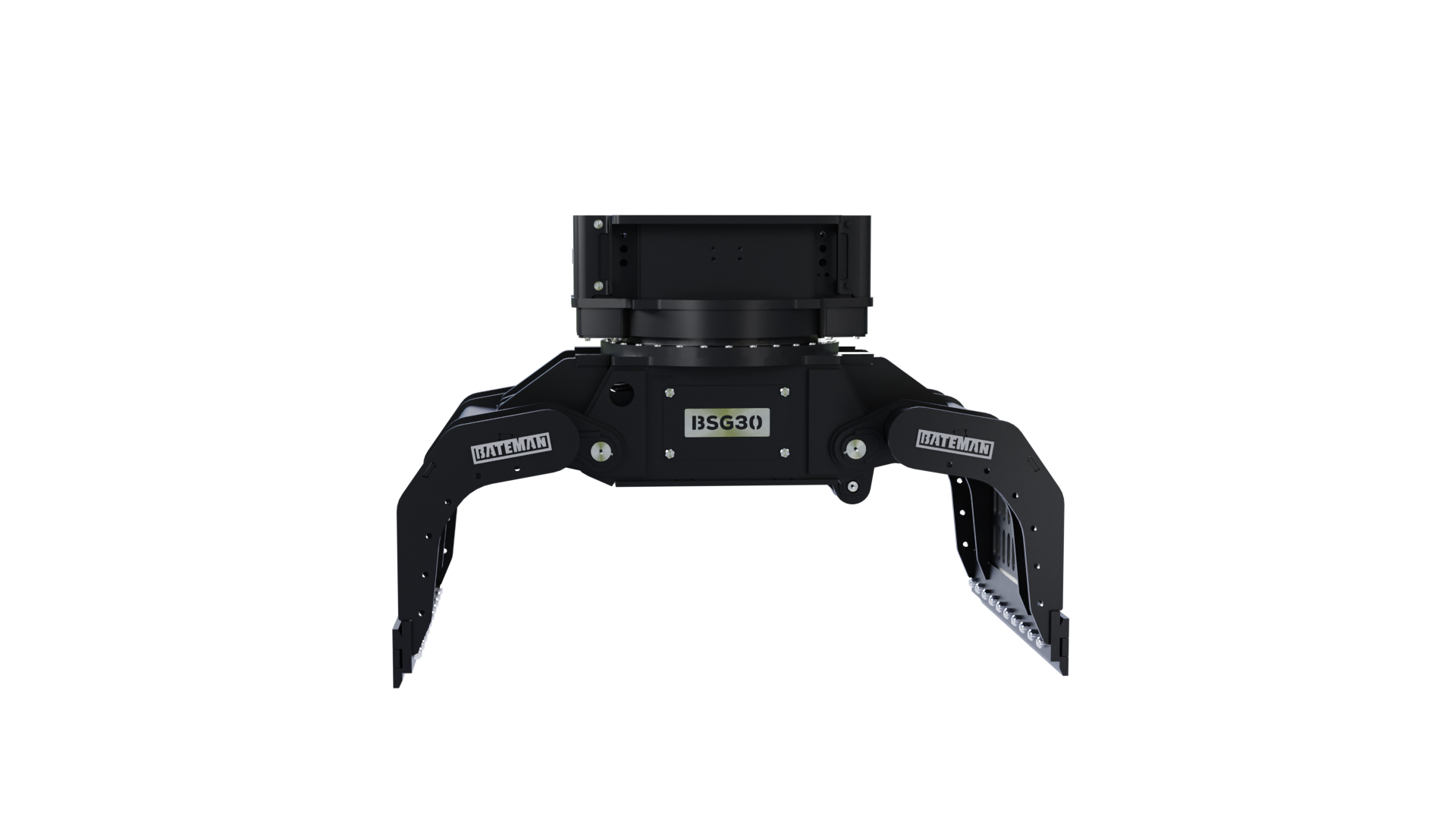

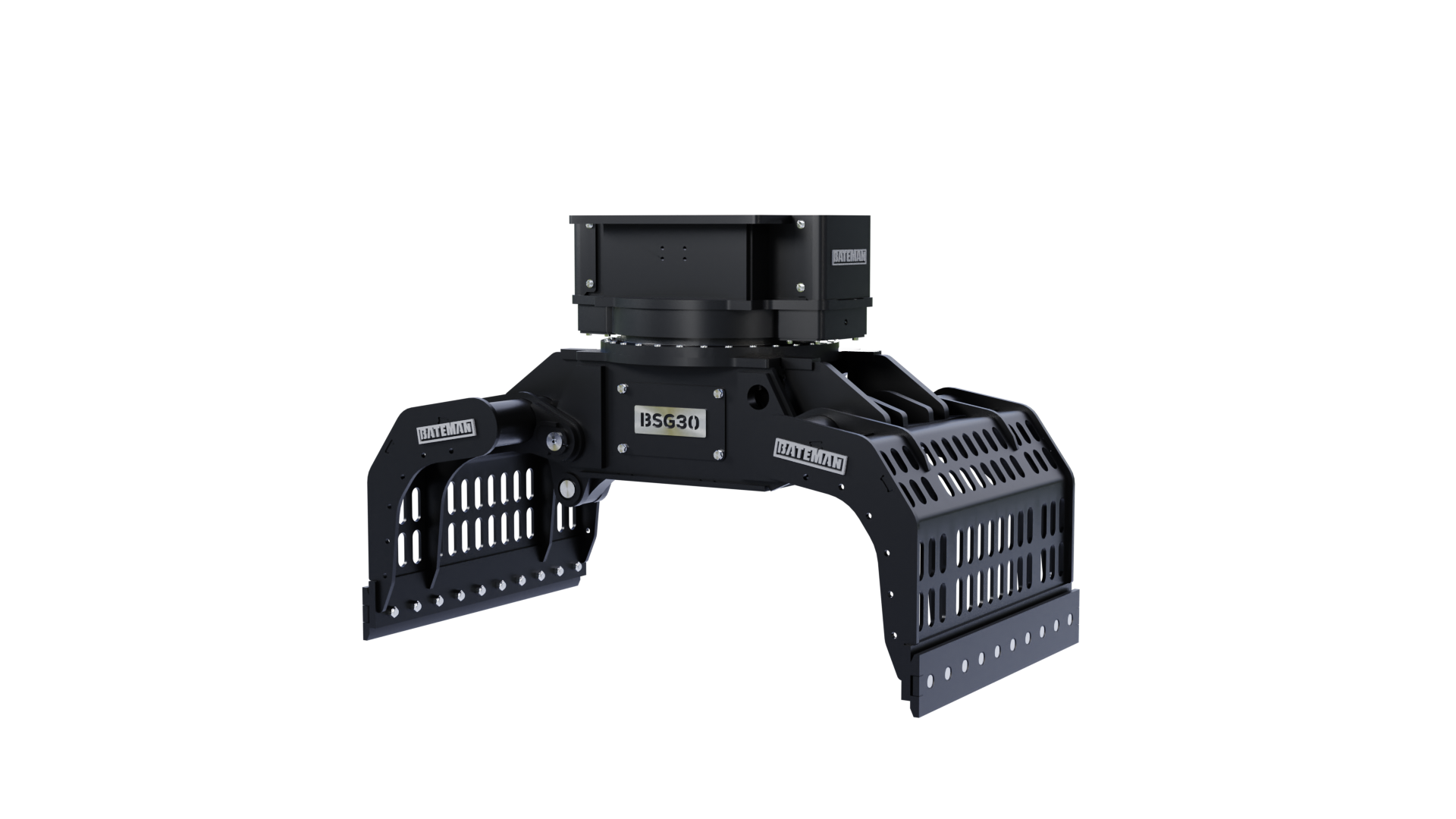

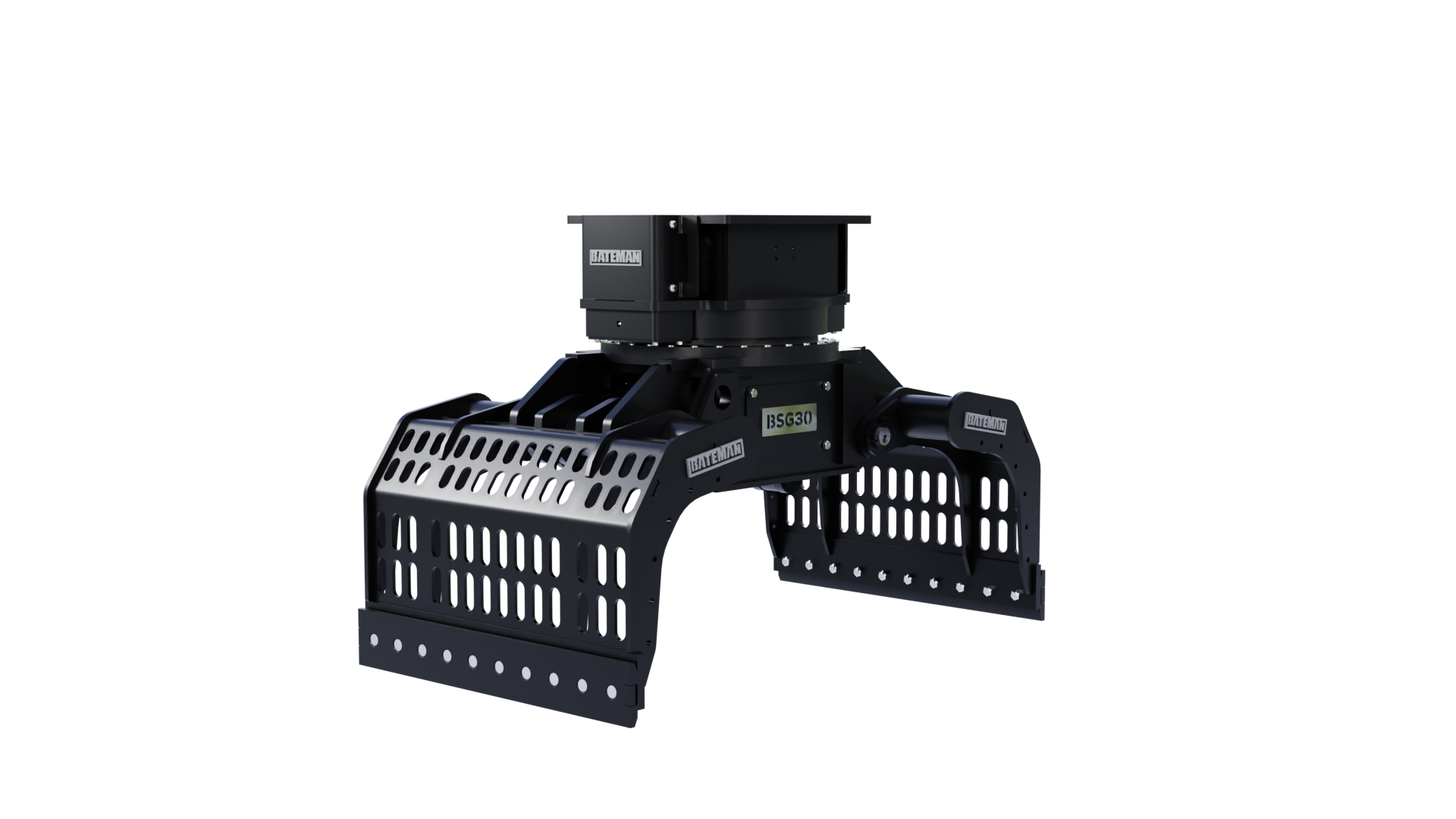

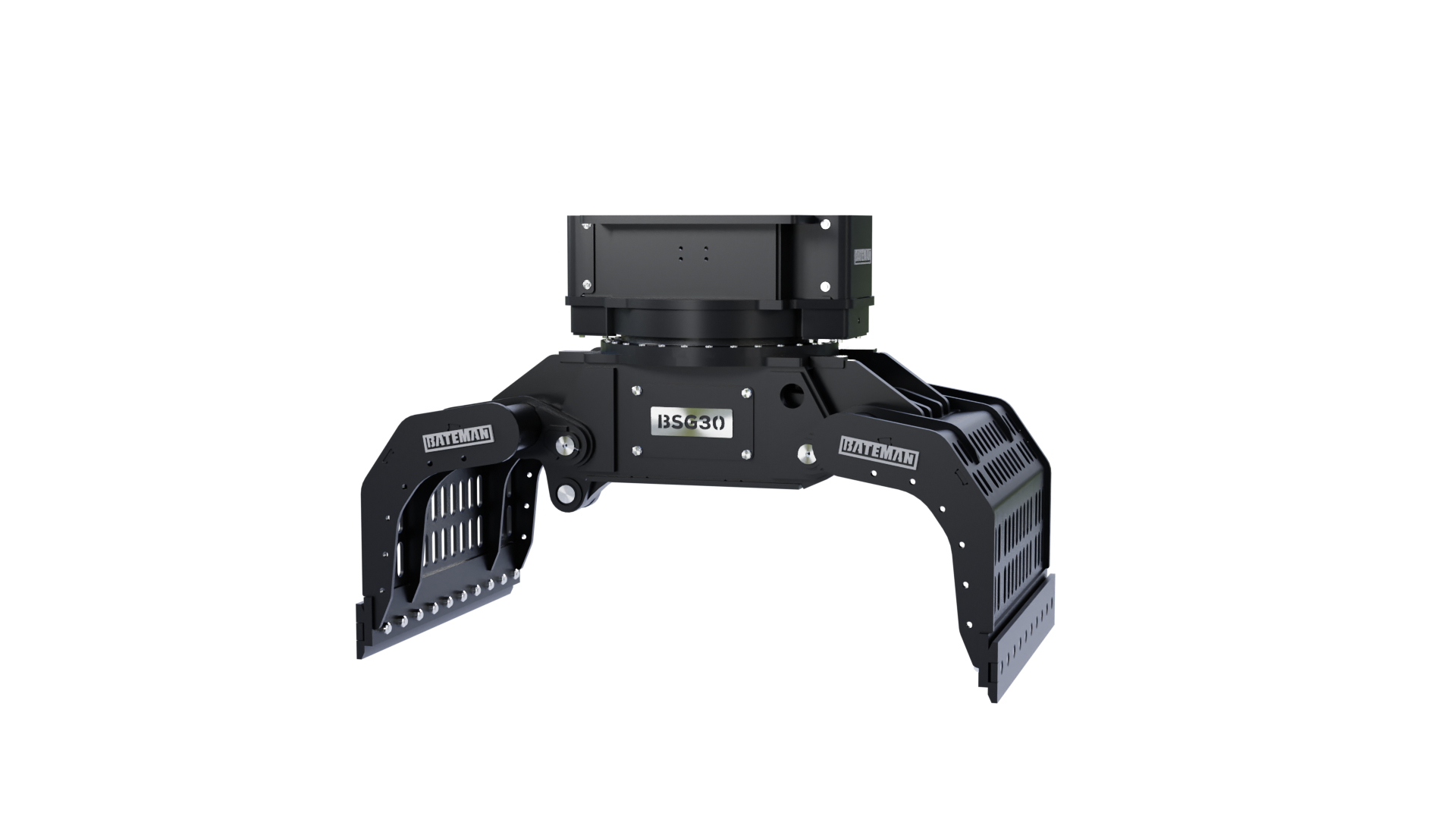

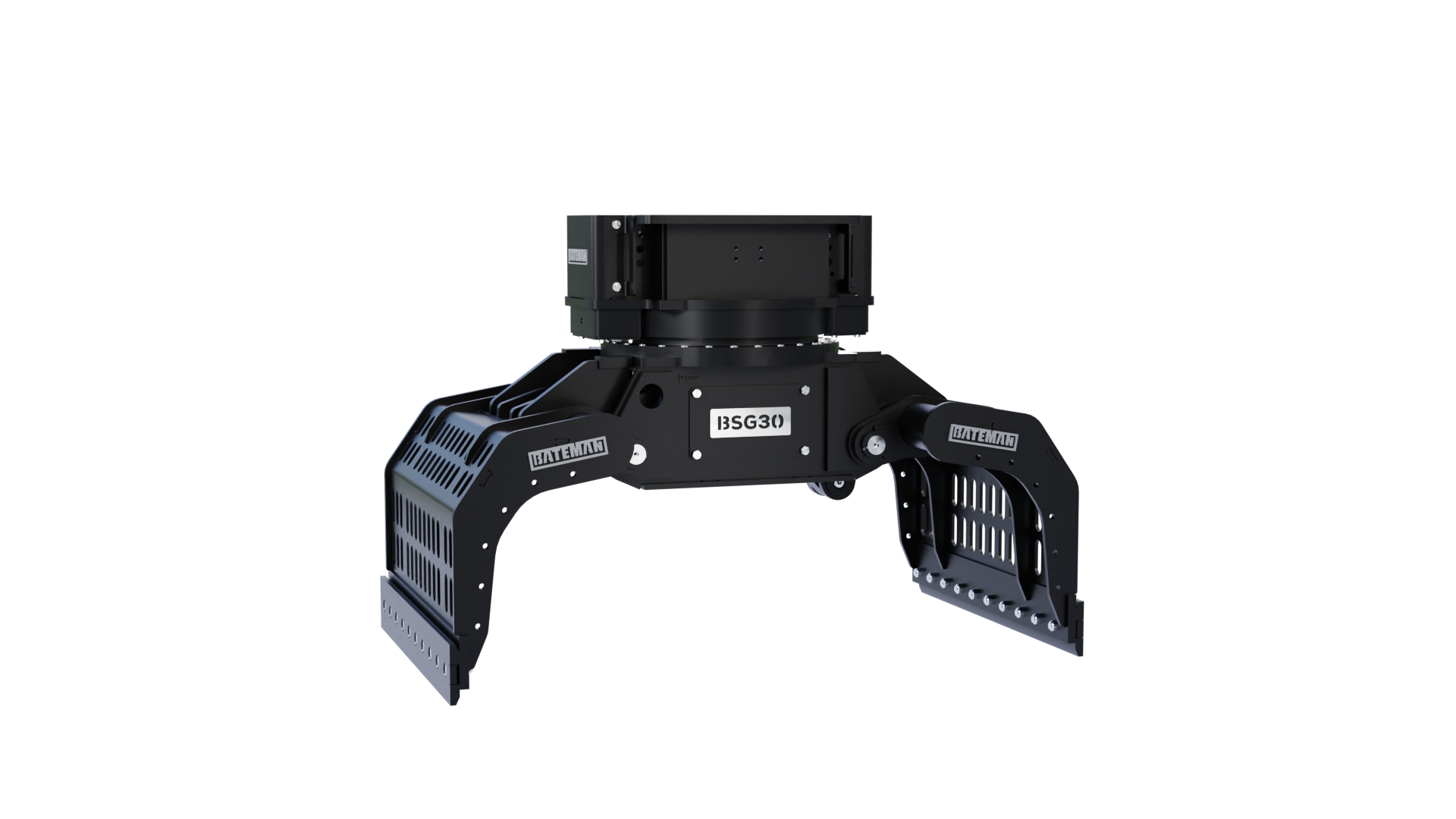

The Bateman Waste Sorting Grapple can be used for demolishing, sorting, and loading. This rotating Sorting Grapple comes complete with heavy duty fully protected cylinders and hoses, a robust design, and optional bolt on sides that turn this grabber into a clamshell bucket. The Bateman Sorting Grapple is suitable for handling demolition, construction, and waste materials.
- 360 degrees of continuous rotation.
- Fully guarded, high-pressure cylinders.
- Oversized pins with locknuts.
Video
Products Specification
Demolition Jaws or Waste Style Jaws Available. 360° Continuous Rotating Bearing. Optional Bolt on Side Plates Turn This Sorting Grapple into A Clamshell Bucket. Available with A Pin-On Yoke, Direct Lugging, Or for Use with A Quick Coupler. Fully Guarded High Pressure Cylinders. Oversized Pins with Custom Locknuts. Supplied with Jumper Hoses. Custom Sizes Available Upon Request.
| Model | BSG-07W |
|---|---|
| Machine Class | 5t - 9t |
| Max Opening in (mm) | 60 (1,524) |
| Width in (mm) | 24 (610) |
| Tine Height in (mm) | 16.5 (419) |
| Volume yd³ (m³) | 0.2 (0.15) |
| Force lbf (kN) | 5,625 (25) |
| Rotation | MR075 |
| Weight lb (kg) | 1,100 (499) |
| Model | BSG-10W |
|---|---|
| Machine Class | 7t - 12t |
| Max Opening in (mm) | 70 (1,778) |
| Width in (mm) | 28 (711) |
| Tine Height in (mm) | 20.5 (521) |
| Volume yd³ (m³) | 0.3 (0.23) |
| Force lbf (kN) | 7900 (35) |
| Rotation | MR075 |
| Weight lb (kg) | 1,350 (612) |
| Model | BSG-13W |
|---|---|
| Machine Class | 10t - 16t |
| Max Opening in (mm) | 70 (1,778) |
| Width in (mm) | 34 (864) |
| Tine Height in (mm) | 20.5 (521) |
| Volume yd³ (m³) | 0.38 (0.29) |
| Force lbf (kN) | 10,200 (45) |
| Rotation | MR160 |
| Weight lb (kg) | 1,900 (862) |
| Model | BSG-18W |
|---|---|
| Machine Class | 15t - 22t |
| Max Opening in (mm) | 80 (2,302) |
| Width in (mm) | 36 (914) |
| Tine Height in (mm) | 22.5 (571) |
| Volume yd³ (m³) | 0.58 (0.44) |
| Force lbf (kN) | 12,365 (55) |
| Rotation | MR200 |
| Weight lb (kg) | 3,425 (1,553) |
| Model | BSG-25W |
|---|---|
| Machine Class | 20t - 29t |
| Max Opening in (mm) | 84 (2,159) |
| Width in (mm) | 44 (1,118) |
| Tine Height in (mm) | 24 (610) |
| Volume yd³ (m³) | 0.8 (0.6) |
| Force lbf (kN) | 15,300 (68) |
| Rotation | MR200 |
| Weight lb (kg) | 4,025 (1,826) |
| Model | BSG-30W |
|---|---|
| Machine Class | 25t - 38t |
| Max Opening in (mm) | 88 (2,235) |
| Width in (mm) | 49 (1,245) |
| Tine Height in (mm) | 24 (610) |
| Volume yd³ (m³) | 1 (0.76) |
| Force lbf (kN) | 18,000 (80) |
| Rotation | MR300 |
| Weight lb (kg) | 4,500 (2,041) |
| Model | BSG-50W |
|---|---|
| Machine Class | 30t - 50t |
| Max Opening in (mm) | 92 (2,337) |
| Width in (mm) | 59 (1,499) |
| Tine Height in (mm) | 25.5 (648) |
| Volume yd³ (m³) | 1.25 (0.95) |
| Force lbf (kN) | 20, 250 (90) |
| Rotation | MR300 |
| Weight lb (kg) | 5,175 (2,347) |
| Model | BSG-50W |
|---|---|
| Machine Class | 40t - 65t |
| Max Opening in (mm) | 112 (2,845) |
| Width in (mm) | 59 (1,499) |
| Tine Height in (mm) | 30 (762) |
| Volume yd³ (m³) | 1.5 (1.15) |
| Force lbf (kN) | 25, 000 (111) |
| Rotation | MR400 |
| Weight lb (kg) | 8,800 (3,992) |
Demolition or waste-style jaws available. Optional bolt-on side plates turn this sorting grapple into a clamshell bucket. Custom sizes available upon request.
